Petroleum Products

Our refinery produces a range of high value, environment-friendly petroleum products such as Motor Spirit, High Speed Diesel, Superior Kerosene Oil, Aviation Turbine Fuel, Liquefied Petroleum Gas, Naphtha, Pet Coke, Sulphur, Bitumen, to cater to both the domestic and commercial demand in the northern region of the country. All refined products are supplied to and marketed through HMEL's Joint Venture promoter HPCL and its nominated companies.

We have marked presence for Pet Coke, Sulphur and Polypropylene in the export markets and HMEL products conform to the export specifications.

HMEL Product Portfolio

Petroleum Products



Product Specifications Applications
Petroleum Products
Motor Gasoline
1. Research Octane Number (RON) : Min. 91
2. Sulfur BS IV grade : Max. 50 wt ppm
     BS IV grade : Max. 10 wt ppm
3. Density at 15°C : 720 - 775 kg/m3
- Fuel for spark-ignition internal combustion engine
High Speed Diesel (HSD)
1. Cetane Number : Min. 51
2. Sulfur BS IV grade : Max. 50 wt ppm
     BS VI grade : Max. 10 wt ppm
3. Density at 15°C : 815 - 845 kg/m3
- Fuel for compression ignition internal combustion engines
- Fuel for diesel engines in power generation, construction, and farming
Superior Kerosene Oil (SKO)
1. Sulfur : Max. 0.20 mass%
2. Smoke Point : Min. 18 mm
3. Density at 15°C (typical) : 775 - 800 kg/m3
- Cooking fuel in portable stoves
- Lighting fuel in kerosene lamps and lanterns
Aviation Turbine Fuel (ATF)
1. Sulfur : Max. 0.25 mass%
2. Density at 15°C : 775 - 840 kg/m3
3. Electrical conductivity : 50 - 600 pS/m
(at delivery temperature)
4. Freezing Point : Max. -47 deg C
- Fuel for turbine engines in Aircraft

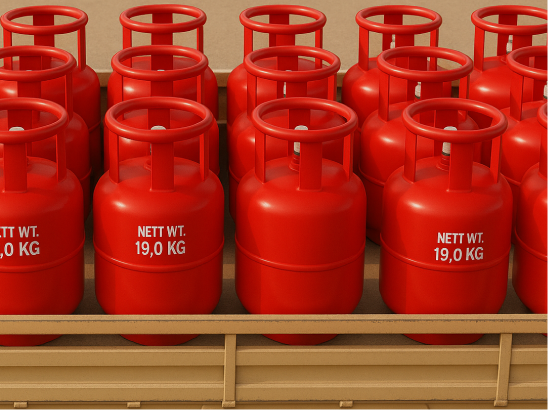

Liquefied Petroleum Gas (LPG)
1. Vapor pressure at 40°C : 520 - 1050 kPa
2. Total Volatile Sulphur : Max. 140 wt ppm
3. Volatility
(Evaporation Temp for 95% vol
: Max. 2.2 deg C
at 760 mm Hg pressure)
4. Freezing Point : Max. -47 deg C
- Fuel for cooking and heating
Naphtha
1. Density at 15°C : Max. 740 kg/m3
2. Sulfur : Max. 600 wt ppm
3. Paraffins : Min. 70 vol%
4. Olefins : Max. 1.0 vol%
5. Final Boiling Point : Max. 204 deg C
- Feedstock for Petrochemicals plants
- Fuel for power and steam generation
Pet Coke
1. Gross Calorific Value (typical) : 8200 Kcal/Kg
2. Total sulfur (typical) : 7.5 mass%
3. Fixed Carbon (typical) : 88 mass%
4. Ash (typical) : < 1.0 mass%
As a heating fuel in the following industries:
- Cement Kilns
- Thermal Power Plants
- Brick Kilns
- Lime Kilns
- Paper Industry
- Steel Rolling Mills
- Foundries
Sulphur
1. Color : Max. Bright Yellow
2. Ash content (Typical) : 0.05 mass%
Sulphur product has applications in the production process of the following industries:
- Sulphuric Acid
- Fertilizer Industry
- Tyre & Rubber Industry
- Sugar Industry
- Linear Alkyl Benzene
- Carbon Disulphide
- Caprolactam
- Explosives & Fire Crackers
- Pharma Industry
- Dye & Dye Intermediates
Bitumen
VG 10 grade:
1. Penetration at 25°C, 100g, 5s : Min. 80 units
(1 unit= 0.1 mm)
2. Absolute viscosity at 60°C : 800 - 1200 Poise
3. Kinematic Viscosity at 135°C : Min. 250 cSt
4. Softening Point (R&B) : Min. 40 °C

VG 30 grade:
1. Penetration at 25°C, 100g, 5s : Min. 45 units
(1 unit= 0.1 mm)
2. Absolute viscosity at 60°C : 2400 - 3600 Poise
3. Kinematic Viscosity at 135°C : Min. 350 cSt
4. Softening Point (R&B) : Min. 47°C

VG 40 grade:
1. Penetration at 25°C, 100g, 5s : Min. 35 units
(1 unit= 0.1 mm)
2. Absolute viscosity at 60°C : 3200 - 4800 Poise
3. Kinematic Viscosity at 135°C : Min. 400 cSt
4. Softening Point (R&B) : Min. 50 °C
- Road pavement
- Roofing felts

Speciality Products



Product Specifications Applications
Speciality Products
Hexane
1. Density at 20°C : Max. 5 wt ppm
2. Sulfur : 3200 - 4800 Poise
3. Distillation: IBP : Min. 63°C
Recovery between 64°C - 70°C : Min. 95 vol%
4. Composition (typical)
Saturates : 99.99 vol%
n-Hexane : 35 - 45 vol%
Cyclo Hexane : 2 - 4 vol%
- Drug and pharmaceutical industry
- Solvent in solvent extraction process
Mineral Turpentine Oil (MTO)
1. Color-Saybolt : Min. 21
2. Density at 15°C (typical) : 775 - 800 kg/m3
3. Flash Point : Min. 30°C
4. Aromatic Content (typical) : 16 - 18 vol %
- Raw material for paints and varnishes
- Dry cleaning and other industrial cleaning purposes

By Products



Product Specifications Applications
By-Products
Fly Ash
Typical:
1. Appearance : Grey Fine Powder
2. Ash at 1000 oC : 90 - 98%
3. CaSO4 : 35 - 45 %
4. CaO : 45 - 55 %

- In manufacturing of Portland Pozzalana Cement
- Embankments and other structural fills (usually for road construction)

Petrochemicals



Product Specifications Applications
Petrochemicals
Polypropylene (PP)
1. POLYSURE - M12RR
Melt Flow Index : 12.0 gm/10 min.
Injection Moulding (IM):
For General Purpose Injection Moulding applications such as Furniture, Houseware, Caps & Closures, Medical Devices, Automotives, Appliances, Full drawn yarn for straps etc.
2. POLYSURE - R03RR
Melt Flow Index : 3.4 gm/10 min.
Woven Sacks/Tape (Raffia):
For Woven sacks used for packaging of Cement, Sugar, Foodgrain, Fertilizers, Chemicals, Polymers. For Leno bags used for Agricultural produce. For Woven fabric, Tarpaulins, Yarns, Monofilaments, Ropes etc.
3. POLYSURE - F03RR
Melt Flow Index : 3.2 gm/10 min.
Bi-axially Orientated PP Film (BOPP):
For Textile Packaging, FMCG Packaging, Printed Films, Metallized Films, Cigarette Overwraps, Labels, Lamination Films, Adhesive tapes etc.
4. POLYSURE - F10SR
Melt Flow Index : 10.5 gm/10 min.
Tubular Quench Film (TQ):
For transparent packaging of grocery, snack food, Bread, garments etc.
5. POLYSURE - T03NR
Melt Flow Index : 3.5 gm/10 min.
Thermoforming (TF):
For disposable cups, plates, food containers, trays, stationary sheets etc.
6. POLYSURE - Y25GR
Melt Flow Index : 25.0 gm/10 min.
Fibre & Filaments (F&F):
For Multi filament yarn applications used in upholstery fabric, belts and straps, socks, bulk continuous filamnets for carpets etc.
7. POLYSURE - Y35GR
Melt Flow Index : 35.0 gm/10 min.
Fibre & Filaments (F&F):
For Spunbonded Non-Woven Fabrics for carry bags, rice packaging, medical disposables like caps and masks, water filters and  Extrusion coating applications etc.

Petcoke

Our refinery’s state of the art Delayed Coker Unit (DCU) produces high sulphur Petroleum Coke (Pet Coke) which is the carbonaceous solid residue remaining after the distillation of petroleum materials. Pet coke has more than twice the calorific value of coal and is widely used as an alternative to coal in power plants, cement kilns and blast furnaces.

Coke is used as a fuel and as a reducing agent in smelting iron ore in a blast furnace. Any coal using industry can be a potential consumer of Petcoke. Major industrial segments using Fuel grade Petcoke in India are :

  • Cement Kilns
  • Thermal Power Plants
  • Brick Kilns
  • Lime Kilns
  • Cement Kilns
  • Thermal Power Plants
  • Brick Kilns
  • Lime Kilns

BIS specification of petcoke as per IS:8502-1994 is given below:

Particular Value
Moisture (% mass, max) 8-12
Moisture (% mass, max) 4.5-7.5
Ash, % mass, max 0.2-0.3
Volatile Matter, %mass, max 8-11
Fixed Carbon, % mass, min 87.93-91.01
Gross Calorific Value, (GCV) Kcal/kg 7,800-8000

Petroleum coke is the solid residue remaining after the distillation of petroleum materials. It is a carbonaceous solid derived from oil refinery Delayed Coker Unit.

High Carbon Content : It’s high carbon content makes it an excellent heat energy source.

High Calorific Value : Petcoke has high calorific value, ranging from 7000 to 8500 Kcal/kg, which makes it an economic fuel as compared to the alternate fuel coal.

Low Volatile Matter : Low volatile matter makes it a slow burning fuel so it requires high ignition temperature.

High Sulphur Content : It has high Sulphur content, which necessitates the deployment of SOx capture or removal system to reduce SO2 emissions. However, Petcoke is ideal for burning in lime kilns, where the sulphur combines with various salts of calcium to form sulphates, thus limiting the SO2 emission.

Low Ash Content : Petcoke has extremely low ash content, which eliminates the need to handle and dispose high quantity of ash associated with combustion of Indian coal having 15-35% ash.

High Hard Grove Index : Pet coke has low Hard Groove Index, which makes it relatively harder material to grind and pulverise.

Comparison Of Indian Coal, Imported Coal & Petcoke

A comparison of specification of C grade Indian non-coking coal used by cement industry, coal imported from Indonesia and petcoke to be produced by HMEL is shown below

Parameter Average Values
‘C Grade’ Indian Coal Coal Imported from Indonesia Petcoke to be produced by HMEL
GCV (Kcal/kg) 4900 6400 8200
Sulphur, (% mass, max) 0.8 1.00 7.5
Ash Content, (% mass, max) 32 4.5 NIL
Volatile Matter, (% mass, max) 27 41 10
Moisture Content (%mass, max) 4 16 10
Metallic Impurities Absent Absent Present (Ni & V)
Non-Metallic Impurity Present Absent Absent
Hard Grove Index (HGI) - - 30-40
Size in mm (Max.) - - 100

Sulphur

Our Sulphur Recovery Unit (SRU) produces Sulphur in powder and lump form. Maximum usage of Sulphur is for production of Sulphuric Acid which is widely used as a raw material for producing phosphatic and nitrogenous fertilizers. In raw form Sulphur is also used in explosives, sugar industry, match sticks etc

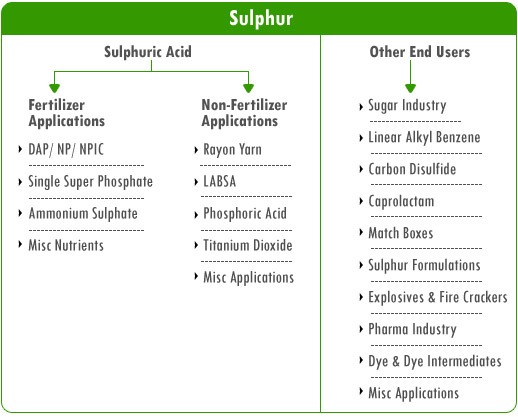

Major Applications

Maximum usage of Sulphur is for production of Sulphuric Acid. Sulphuric acid is widely used as a raw material for producing phosphatic and nitrogenous fertilizers.

Fertilizer Application of Sulphuric Acid Non-Fertilizer applications of Sulphuric Acid Other applications of Sulphur in Raw Form
Single Super Phosphate (SSP) Diammonium Phosphate (DAP) Ammonium Sulfate (AS)
Batteries Detergents Paint Caustic Soda Titanium Dioxide Phosphoric Acid & Printing etc.
Sugar Industry Match Sticks Explosives Fire crackers Vulcanisation of Rubber Pharmaceuticals Dyes etc

The guidance values of assay and impurities as per BIS Standard IS:6655-1972, are as below

Characteristics Percentage by Mass
Assay (dry basis) 99
Colour Bright whitish yellow
Ash 0.25
Carbon 0.1 to 1.0

Speciality Products

Our special products portfolio includes Premium Grade Mineral Turpentine Oil (MTO) that meets the stringent norms set by major paint manufacturers and Food Grade Hexane that meet the requirements of sensitive industries such as Pharmaceuticals

By-Products

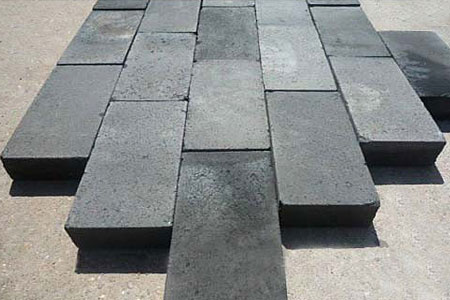

Fly Ash is the residue left after combustion of Pet Coke in the refinery's captive power plant. Due to its cementitious properties, it is excellent for manufacture of cement and bricks. India is the second largest brick maker in the world after China. Usage of Fly Ash in making bricks, compared to traditional clay bricks manufacture, reduces pollution.
